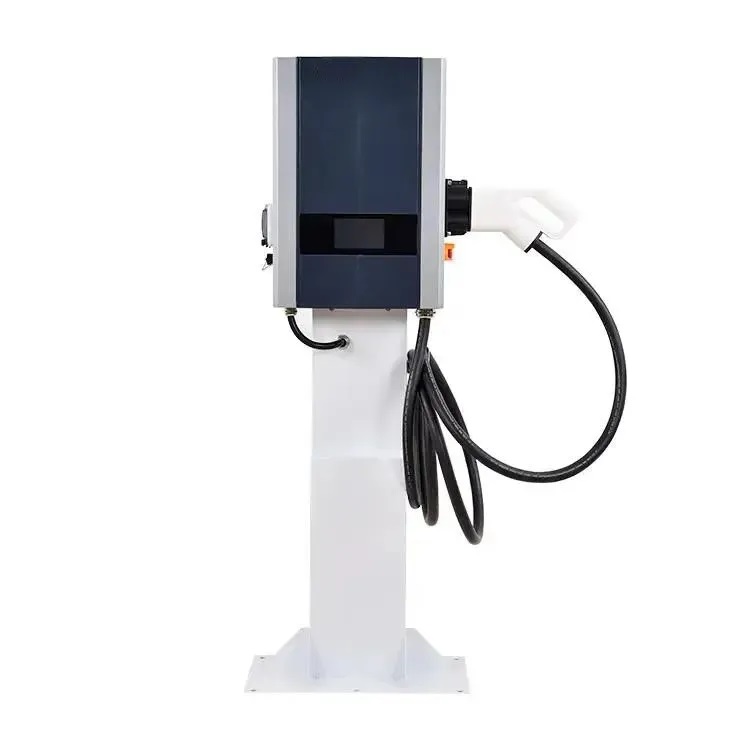

7kW DC Wallbox EV Charger Station, CCS2 Plug, 90V-265V, IP54

The charging station offers an output power of 7kW with an input rating of 90V-265V and supports AC input connections of L2+L3+PE (NEMA, JPS). It handles a maximum input current of 32A and operates at a frequency of 50Hz/60Hz. It adheres to multiple charging protocols including CHAdeMO 2.0, DIN 70121, ISD1S118, IEC61851-23, and IEC61851-24. The power factor is greater than 0.99, and it boasts an efficiency of 95%. The output voltage range spans from 200V to 750V DC with a maximum output current of 20A. For user interaction, the station features a TFT-LCD touch panel and push buttons. The device's packing dimensions are 548mm x 378mm x 160mm for the wall unit and 1500mm x 520mm x 250mm for the upright unit. It weighs 22kg in the wall-mounted configuration and 25kg when upright. Designed to operate in extreme conditions, it functions within a temperature range of -40°C to 85°C and at altitudes up to 2000m. The station comes with a 5-meter cable for CHAdeMO, CCS, and GB/T connections, with customization options available. It complies with the EN61851-1 regulation and has certifications for CE and ROHS.
