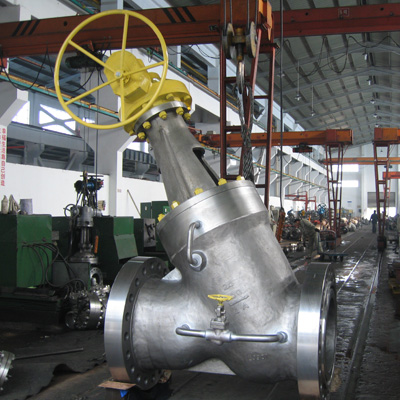

ASTM A351 CF8 Globe Valve, DN600, PN50, DIN 3356, RF

The ASTM A351 CF8 Stainless Steel Globe Valve is engineered for high-performance applications and is available in a 24-inch nominal diameter with a pressure rating of 300 LB (PN50). It adheres to the DIN 3356 design standard, ensuring precision and reliability. The valve is constructed from ASTM A351 CF8 stainless steel, providing exceptional durability and resistance to harsh environments. The end connection is RF (Raised Face), and the valve’s face-to-face dimensions conform to DIN 3202-F32 specifications. It is designed to operate in extreme temperature ranges from -196℃ to +800℃, making it suitable for various demanding conditions. The valve undergoes rigorous testing and inspection according to EN 12266-1/2 standards. Additionally, this valve range is available in various body materials, including carbon steel, stainless steel, and alloy steel, with nominal diameters ranging from 1/2 inch to 24 inches (DN15-DN600). It offers multiple end connection options, such as BW (Butt Weld) and flanged, and can handle a broad pressure range from Class 150 to 2500 LB (PN16-PN420). The valve can be operated using a handwheel, gearbox, electric actuator, or pneumatic actuator, and is designed to function in working temperatures from -29℃ to +560℃.
