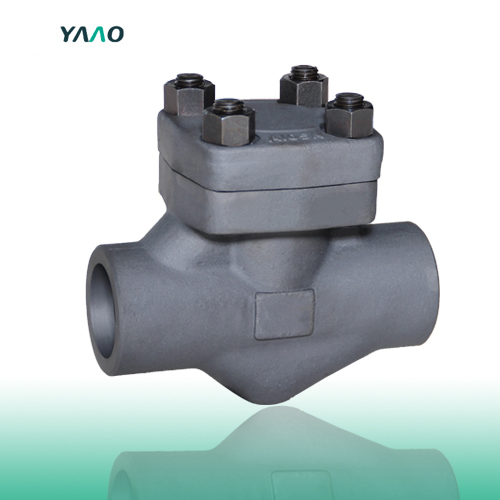

- **Body Material**: The valve body is constructed from **ASTM A105**, providing excellent mechanical properties suitable for high-pressure and high-temperature applications.
- **Size Range**: Available in sizes from **NPS 3/8 inch to NPS 4 inch**, accommodating a variety of flow control needs across different piping systems.
- **Pressure Class**: Rated from **ASME Class 150 to ASME Class 2500 LB**, allowing the valve to be used in low to high-pressure applications.
- **Design Standards**: The valve is designed in accordance with **API 602**, **ISO 15761**, and **ASME B16.34** standards, ensuring high quality, durability, and performance.
- **Wall Thickness**: Compliant with **API 602** and **ASME B16.34**, ensuring adequate wall thickness for pressure containment and safety.
- **Pressure-Temperature Rating**: Follows the standards set by **ASME B16.34**, providing reliable performance across various temperature and pressure conditions.
- **Face-to-Face Dimensions**: For flanged valves, dimensions are in accordance with **ASME B16.10**, ensuring standardization and compatibility in piping systems.
- **Flange Design**: Conforms to **ASME B16.5**, providing robust and leak-proof connections for flanged valves.
- **Socket Weld Ends**: Designed to **ASME B16.11** specifications, allowing secure and reliable welding connections.
- **Screwed Ends (NPT)**: Meets the requirements of **ASME B1.20.1**, providing standardized threading for easy installation and maintenance.
- **Butt Welding Ends**: Built to **ASME B16.25** standards, offering strong and durable connections suitable for high-stress environments.
- **Pressure Testing**: The valve undergoes rigorous pressure testing in accordance with **API 598**, ensuring leak-tight performance and reliability under operational conditions.
