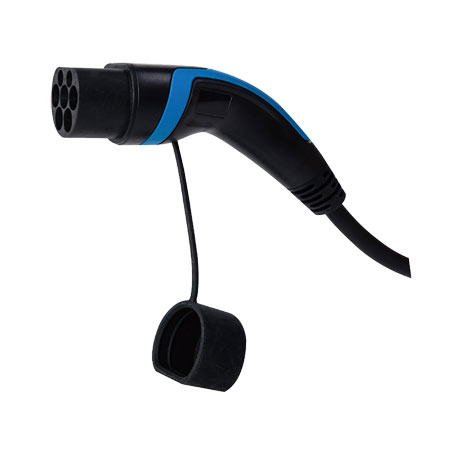

AC EV Charging Cable TYPE2

AG Electrical

Mechanical Properties

Mechanical life: no-load plug>10000times

Impact resistance: be able to afford 1m drop and 2T vehicle run over pressure
Insertion and extraction force:<100N

Electrical Performance

Rated current: 16A/20A/32A

Rated voltage: 250V/480V
Insulation resistance: >1000MΩ (DC500V)
Pins temperature rise:<50K

Withstand voltage: 2500V
Contact impedance: 0.5mΩMax

Raw Material

Shell material: thermoplastics, flame retardant grade UL94-0

Pin:Copper alloy, silver+top thermoplastic

Environmental PerformanceTemperature:

-30℃~+50℃

EV Charging Cable Type 2 Features
Conforming to the provisions and requirements of IEC62196-2 2016 2-llb. The electric car charging cable type 2 can charge all EV manufactured in Europe and USA, correctly and effectively with high compatibility.
