Vane Type Demister Pad

Hebei Drahtgeflecht Knitted Mesh Co., Ltd.

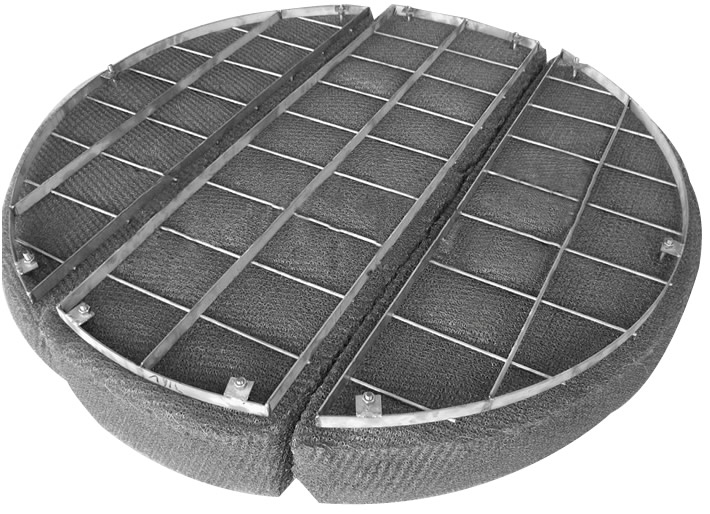

VANE PACK KNITTED WIRE MESH DEMISTER PAD
Also known as vane pack demister, cyclone demister filter, oil filter mesh pad. Vane type mist eliminator demister pads are mainly processed from stainless steel woven knitted mesh, FRP or PP. Vane pack demisters made of Stainless Steel 304 Knitting Wire Mesh is popularly used to remove the mists and liquid droplets entrained in thermal heating filtration system. The wire mesh and vane pack demister separator is a kind of vapor liquid separating device. Mainly used for separating diameter greater than 3 ~ 5 micron droplets. SS 304 Vane type demister pads (W type) are export products designed for Turkey, Thailand, India and Pakistand as well as other countries. This page also introduces how it works.


Installation and Work Principle
When the air with mist rises up at certain speeds and gets through wire mesh, mist will collide with wire and will be attached on the surface of wire in the effect of rising inertia. The dispersion and sedimentation makes mist form bigger and bigger drops until it is heavier than the combined forces of gas rising force and liquids surface tensile and wires capillarity. Therefore, liquid drop will be separated and fall off from wire. Mist is essentially eliminated after gas gets through wire mesh demister.

Illustrated as below how it works with gas scrubbers and various towers.

Vane Type Demister Pad
