2.3 Inch 320x240 QVGA 40PIN MUC TN 300nits TFT LCD Display Module

2.3 Inch 320x240 QVGA 40PIN MUC TN 300nits TFT LCD Display Module

EXSON

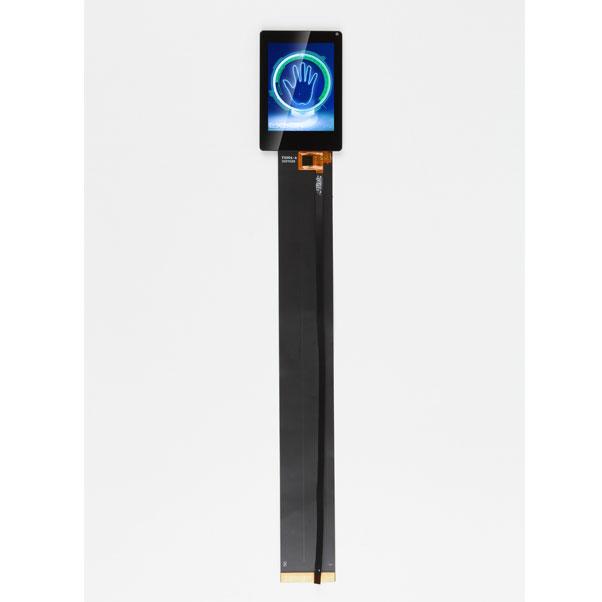

EX02301-A01 is a 2.3 inch, TN TFT LCD module with transmissive mode. Its resolution is 320x240dots (320 vertical by 240 horizontal pixel) and every pixel is made up of three vertical strips of Red, Green and Blue dots. This miniature 2.3 inch TFT module has built-in IC ILI9342C supporting MUC serial interface. The brightness is 300 cd/m2 .Operating temperature covers from -20℃~+70℃, storage temperature range is from -30℃~+80℃.

General Specifications of 2.3 Inch 320x240 QVGA 40PIN MUC TN 300nits
No. Item Specification
1 LCD size 2.3 inch
2 Resolution 320（RGB）x240
3 Active area 46.75(W)×35.06(H)mm
4 Module size 51.00(W)×45.80(H)×2.35(T)(Exclude FPC)mm
5 Viewing Direction 6 o'clock
6 Driver IC ILI9342C
7 Polarizer Transmissive
8 Operating temperature -20℃-70℃
9 Storage temperature -30℃~+80℃
10 Brightness 300cd/m2

Features of 2.3 Inch 320x240 tft QVGA 40PIN MUC TN 300nits
This single-display module is suitable for use in security, handheld devices, instruments and meters, POS machines, police law enforcement instruments, military handheld, vehicle electronics, industrial control equipment and instruments, medical equipment, smart home, Internet of things, new retail, household appliances, small consumer electronic products, and other industries.

As a professional china lcd display supplier, we provide china lcd display module, 2.4 inch lcd panel, 320x240 tft display, 320x240 lcd display, 320x240 lcd, etc. For more information, please feel free to contact us!
