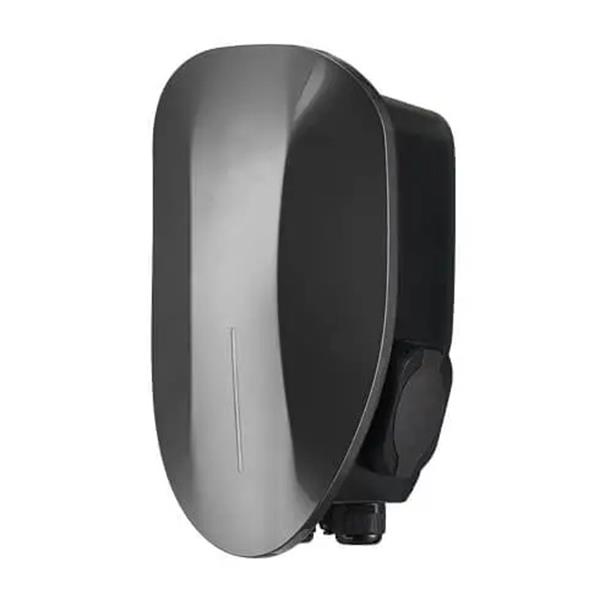

7.2KW AC EV Charger Socket Wallbox

7.2KW AC EV Charger Socket Wallbox

religare-electric

7.2KW AC EV Charger Socket Wallbox
Our 7.2 KW Home Charger Socket Wallbox is a robust, wall-mounted unit designed for speedy electric vehicle charging. With universal socket compatibility and enhanced safety features, it ensures reliable and efficient charging at home or small businesses.

Specification of 7.2KW AC EV Charger Socket Wallbox
Model EVB-132-TC2
Dimension (mm) 360mm (L)* 193mm (W) *170mm (H)
Color Matte black, pearly white, red, blue, metallic gray
HMI Screen (optional)
AC Power AC 240V (single phase)
Rated Current 32A
Charging Power 7.2KW
Connector Type Type 2 / IEC 62196-2 / Europe Standard
Working Condition Elevation ≤2000m
Temperature -20℃~+50℃
Charging Mode Plug and charge (RFID, WIFI and OCPP are optional)
Protection Function Overvoltage, under voltage, overcurrent, short circuit, leakage, etc.
Cable Length 5m (optional)
Protection Level IP55
Installation Wall-mounted or floor-mounted installation

Highlight Of 7.2KW AC EV Charger Socket Wallbox
High Charging Power: The 7.2 kw on board charger socket wallbox provides a high charging power of 7.2 kilowatts, enabling fast and efficient charging for electric vehicles.

Wallbox Design: The charger socket is designed for wall mounting, making it convenient and space-saving in residential and commercial settings.

Compatibility: It is compatible with various electric vehicles, ensuring flexibility and versatility in charging options.

User-Friendly Interface: The wall box features a user-friendly interface with clear LED indicators and intuitive controls, making it easy to operate and monitor the charging process.

Safety Features: The charger socket incorporates multiple safety features such as overcurrent protection, short-circuit protection, and ground fault protection, ensuring safe and reliable charging for both the vehicle and the user.

As an electric protective device company, we will do our best to meet all the needs of customers.
